FET Image Agent Payment Protocol Example
This example showcases a paid image generation service where users pay with native FET tokens directly on the Fetch.ai blockchain. The agent verifies on-chain transactions before generating images using Gemini Imagen and delivers them through the chat protocol. This implementation demonstrates direct blockchain payment integration without third-party payment processors.
What it demonstrates
- On-chain FET payment verification using Fetch.ai ledger queries.
- Seller role implementation in the payment protocol workflow.
- Integration with Gemini Imagen for image generation (Google AI).
- Automatic image delivery as chat resources via tmpfiles.org.
- Robust error handling and one retry without re-payment on failure.
Project Structure
Key files used in this example:
agent.py– Agent setup; includes chat and payment protocolschat_proto.py– Chat protocol and message handlerspayment.py– Seller-side payment logic (request, verify FET payment, generate image)client.py– Gemini Imagen image generation and tmpfiles.org uploadshared.py– Shared utilities for creating chat messages
Core Dependencies
The payment protocol requires these imports:
from uagents_core.contrib.protocols.payment import (
Funds,
RequestPayment,
RejectPayment,
CommitPayment,
CancelPayment,
CompletePayment,
payment_protocol_spec,
)
Additionally, for blockchain verification:
from cosmpy.aerial.client import LedgerClient, NetworkConfig
On-Chain Payment Verification
Unlike token-based payment systems, this example performs direct blockchain verification by querying transaction events on the Fetch.ai network:
payment.py
def verify_fet_payment_to_agent(
transaction_id: str,
expected_amount_fet: str,
sender_fet_address: str,
recipient_agent_wallet,
logger,
) -> bool:
try:
from cosmpy.aerial.client import LedgerClient, NetworkConfig
testnet = os.getenv("FET_USE_TESTNET", "true").lower() == "true"
network_config = (
NetworkConfig.fetchai_stable_testnet()
if testnet
else NetworkConfig.fetchai_mainnet()
)
ledger = LedgerClient(network_config)
expected_amount_micro = int(float(expected_amount_fet) * 10**18)
logger.info(
f"Verifying payment of {expected_amount_fet} FET from {sender_fet_address} "
f"to {recipient_agent_wallet.address()}"
)
tx_response = ledger.query_tx(transaction_id)
if not tx_response.is_successful():
logger.error(f"Transaction {transaction_id} was not successful")
return False
recipient_found = False
amount_found = False
sender_found = False
denom = "atestfet" if testnet else "afet"
expected_recipient = str(recipient_agent_wallet.address())
for event_type, event_attrs in tx_response.events.items():
if event_type == "transfer":
if event_attrs.get("recipient") == expected_recipient:
recipient_found = True
if event_attrs.get("sender") == sender_fet_address:
sender_found = True
amount_str = event_attrs.get("amount", "")
if amount_str and amount_str.endswith(denom):
try:
amount_value = int(amount_str.replace(denom, ""))
if amount_value >= expected_amount_micro:
amount_found = True
except Exception:
pass
if recipient_found and amount_found and sender_found:
logger.info(f"Payment verified: {transaction_id}")
return True
logger.error(
f"Payment verification failed - recipient: {recipient_found}, "
f"amount: {amount_found}, sender: {sender_found}"
)
return False
except Exception as e:
logger.error(f"FET payment verification failed: {e}")
return False
Payment Protocol and Image Generation
The payment protocol uses FET_FUNDS, set_agent_wallet, request_payment_from_user, and handles CommitPayment / RejectPayment. After a verified payment, generate_image_after_payment calls Gemini Imagen and process_image_result uploads to tmpfiles.org and sends the image as a chat resource:
payment.py
"""Payment protocol for Gemini Imagen image generation agent."""
import base64
import os
import time
from datetime import datetime, timezone
from uuid import uuid4
from uagents import Context, Protocol
from uagents_core.contrib.protocols.payment import (
CancelPayment,
CommitPayment,
CompletePayment,
Funds,
RejectPayment,
RequestPayment,
payment_protocol_spec,
)
from uagents_core.contrib.protocols.chat import (
ChatMessage as AvChatMessage,
Resource,
ResourceContent,
TextContent,
)
from shared import create_text_chat
_agent_wallet = None
def set_agent_wallet(wallet):
global _agent_wallet
_agent_wallet = wallet
payment_proto = Protocol(spec=payment_protocol_spec, role="seller")
FET_FUNDS = Funds(currency="FET", amount="0.1", payment_method="fet_direct")
ACCEPTED_FUNDS = [FET_FUNDS]
# ... verify_fet_payment_to_agent(...) as above ...
async def request_payment_from_user(
ctx: Context, user_address: str, description: str | None = None
):
accepted_funds = [FET_FUNDS]
metadata = {}
fet_network = (
"stable-testnet"
if os.getenv("FET_USE_TESTNET", "true").lower() == "true"
else "mainnet"
)
if _agent_wallet:
metadata["provider_agent_wallet"] = str(_agent_wallet.address())
metadata["fet_network"] = fet_network
if description:
metadata["content"] = description
else:
metadata["content"] = (
"Please complete the payment to proceed. "
"After payment, I will generate one image from your prompt."
)

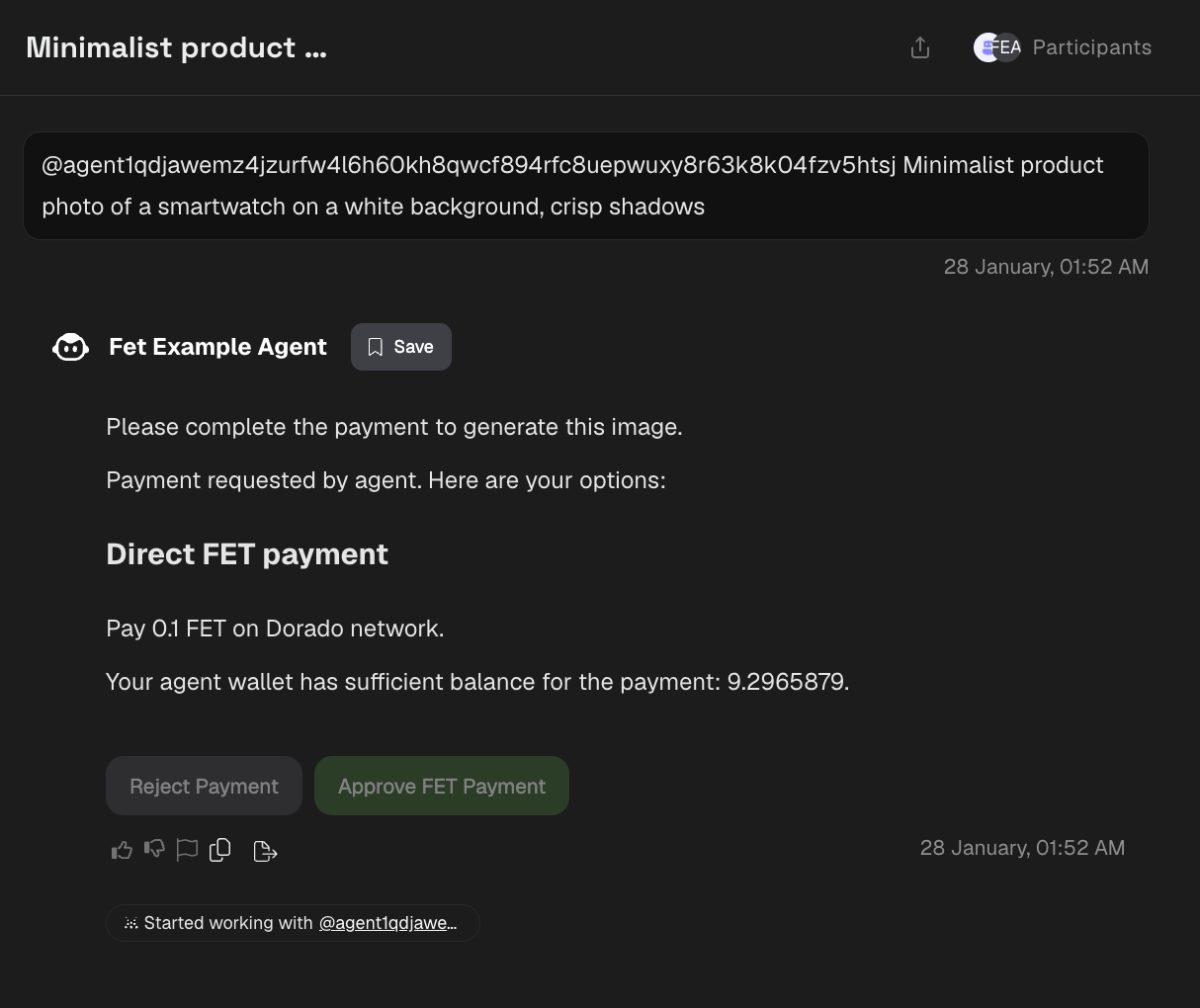

payment_request = RequestPayment(
accepted_funds=accepted_funds,
recipient=str(_agent_wallet.address()) if _agent_wallet else "unknown",
deadline_seconds=300,
reference=str(uuid4()),
description=description
or "Gemini Imagen: after payment, I will generate one image from your prompt",
metadata=metadata,
)
ctx.logger.info(f"Sending payment request to {user_address}")
await ctx.send(user_address, payment_request)
def _allow_retry(ctx: Context, sender: str, session_id: str) -> bool:
retry_key = f"{sender}:{session_id}:retry_count"
try:
current = int(ctx.storage.get(retry_key) or 0)
except Exception:
current = 0
if current >= 1:
return False
ctx.storage.set(retry_key, current + 1)
ctx.storage.set(f"{sender}:{session_id}:awaiting_prompt", True)
ctx.storage.set(f"{sender}:{session_id}:verified_payment", True)
return True
@payment_proto.on_message(CommitPayment)
async def handle_commit_payment(ctx: Context, sender: str, msg: CommitPayment):
ctx.logger.info(f"Received payment commitment from {sender}")
payment_verified = False
if msg.funds.payment_method == "fet_direct" and msg.funds.currency == "FET":
try:
buyer_fet_wallet = None
if isinstance(msg.metadata, dict):
buyer_fet_wallet = msg.metadata.get("buyer_fet_wallet") or msg.metadata.get("buyer_fet_address")
if not buyer_fet_wallet:
ctx.logger.error("Missing buyer_fet_wallet in CommitPayment.metadata")
else:
payment_verified = verify_fet_payment_to_agent(
transaction_id=msg.transaction_id,
expected_amount_fet=FET_FUNDS.amount,
sender_fet_address=buyer_fet_wallet,
recipient_agent_wallet=_agent_wallet,
logger=ctx.logger,
)
except Exception as e:
ctx.logger.error(f"FET verify error: {e}")
else:
ctx.logger.error(f"Unsupported payment method: {msg.funds.payment_method}")
if payment_verified:
ctx.logger.info(f"Payment verified successfully from {sender}")
await ctx.send(sender, CompletePayment(transaction_id=msg.transaction_id))
await generate_image_after_payment(ctx, sender)
else:
ctx.logger.error(f"Payment verification failed from {sender}")
await ctx.send(
sender,
CancelPayment(
transaction_id=msg.transaction_id,
reason="Payment verification failed",
),
)
@payment_proto.on_message(RejectPayment)
async def handle_reject_payment(ctx: Context, sender: str, msg: RejectPayment):
ctx.logger.info(f"Payment rejected by {sender}: {msg.reason}")
await ctx.send(
sender,
create_text_chat(
"Sorry, you denied the payment. Reply again and I'll send a new payment request."
),
)
async def generate_image_after_payment(ctx: Context, user_address: str):
from client import run_gemini_image_blocking
session_id = str(ctx.session)
prompt = ctx.storage.get(f"prompt:{user_address}:{session_id}") or ctx.storage.get("current_prompt")
if not prompt:
ctx.logger.error("No prompt found in storage")
await ctx.send(user_address, create_text_chat("Error: No prompt found"))
return
ctx.logger.info(f"Generating image for verified payment: {prompt}")
try:
result = run_gemini_image_blocking(prompt=prompt)
ctx.logger.info(
f"Generation result: status={result.get('status')}, has_image={bool(result.get('image_data'))}"
)
await process_image_result(ctx, user_address, result)
except Exception as e:
ctx.logger.error(f"Image generation error: {e}")
await ctx.send(user_address, create_text_chat(f"Error generating image: {e}"))
async def process_image_result(ctx: Context, sender: str, result: dict):
session_id = str(ctx.session)
if result.get("status") == "failed" or "error" in result:
err = result.get("error", "Unknown error")
await ctx.send(sender, create_text_chat(f"Error: {err}"))
if _allow_retry(ctx, sender, session_id):
await ctx.send(
sender,
create_text_chat(
"Generation failed, but your payment is valid. "
"Send your image prompt again — you won't be charged again."
),
)
return
image_bytes = result.get("image_data")
content_type = result.get("content_type", "image/png")
if not image_bytes:
await ctx.send(sender, create_text_chat("Image generated but could not retrieve bytes"))
if _allow_retry(ctx, sender, session_id):
await ctx.send(
sender,
create_text_chat(
"Delivery failed, but your payment is valid. Send your prompt again — no extra charge."
),
)
return
from client import upload_image_to_tmpfiles
image_url = await upload_image_to_tmpfiles(image_bytes, content_type)
if not image_url:
image_url = f"data:{content_type};base64,{base64.b64encode(image_bytes).decode()}"
elif image_url.startswith("http://"):
image_url = "https://" + image_url[7:]
try:
await ctx.send(
sender,
AvChatMessage(
timestamp=datetime.now(timezone.utc),
msg_id=uuid4(),
content=[
TextContent(type="text", text="Here is your generated image."),
ResourceContent(
type="resource",
resource_id=uuid4(),
resource=Resource(
uri=image_url,
metadata={"mime_type": content_type, "role": "image"},
),
),
],
),
)
ctx.storage.remove(f"{sender}:{session_id}:retry_count")
ctx.logger.info("Image sent successfully")
except Exception as e:
ctx.logger.error(f"Failed to send image: {e}")
if _allow_retry(ctx, sender, session_id):
await ctx.send(
sender,
create_text_chat(
"Could not send image, but your payment is valid. Send your prompt again — no extra charge."
),
)
else:
await ctx.send(
sender,
create_text_chat("Could not send image. Please try again or start a new session."),
)
Image Generation Service
The agent uses Gemini Imagen for image generation and tmpfiles.org for temporary hosting:
client.py
"""Gemini Imagen image generation client."""
from __future__ import annotations
import asyncio
import os
from io import BytesIO
from typing import Any, Optional
import aiohttp
from dotenv import load_dotenv
load_dotenv()
GEMINI_API_KEY = os.getenv("GEMINI_API_KEY")
IMAGEN_MODEL = os.getenv("GEMINI_IMAGEN_MODEL", "imagen-4.0-fast-generate-001")
TMPFILES_API_URL = "https://tmpfiles.org/api/v1/upload"
async def upload_image_to_tmpfiles(image_data: bytes, content_type: str) -> Optional[str]:
"""Upload image to tmpfiles.org and return the public download URL (https)."""
ext = "png" if "png" in content_type else "jpg"
for attempt in range(3):
try:
form = aiohttp.FormData()
form.add_field("file", image_data, filename=f"image.{ext}", content_type=content_type)
async with aiohttp.ClientSession() as session:
async with session.post(
TMPFILES_API_URL, data=form, timeout=aiohttp.ClientTimeout(total=30)
) as resp:
if resp.status != 200:
continue
data = await resp.json()
if data.get("status") == "success" and data.get("data"):
url = (data["data"].get("url") or data.get("url") or "").strip()
if url and url.startswith("http"):
if url.startswith("http://"):
url = "https://" + url[7:]
if "tmpfiles.org/" in url and "/dl/" not in url:
url = url.replace("https://tmpfiles.org/", "https://tmpfiles.org/dl/", 1)
return url
except Exception:
if attempt < 2:
await asyncio.sleep(2 * (attempt + 1))
return None
def run_gemini_image_blocking(*, prompt: str) -> dict[str, Any] | None:
"""Generate one image from a text prompt using Gemini Imagen."""
if not GEMINI_API_KEY:
return {"error": "GEMINI_API_KEY is not set", "status": "failed"}
try:
from google import genai
from google.genai import types
except ImportError:
return {"error": "google-genai not installed. pip install google-genai", "status": "failed"}
try:
client = genai.Client(api_key=GEMINI_API_KEY)
response = client.models.generate_images(
model=IMAGEN_MODEL,
prompt=prompt.strip(),
config=types.GenerateImagesConfig(number_of_images=1, aspect_ratio="1:1"),
)
except Exception as e:
return {"error": str(e), "status": "failed"}
if not response.generated_images or len(response.generated_images) == 0:
return {"error": "No image generated", "status": "failed"}
gen = response.generated_images[0]
image_obj = getattr(gen, "image", None)
if image_obj is None:
return {"error": "Generated image has no image attribute", "status": "failed"}
image_data = None
content_type = "image/png"
img_bytes = getattr(image_obj, "image_bytes", None)
if img_bytes is not None:
image_data = img_bytes if isinstance(img_bytes, bytes) else bytes(img_bytes)
else:
try:
if hasattr(image_obj, "save"):
buf = BytesIO()
image_obj.save(buf, format="PNG")
image_data = buf.getvalue()
except Exception as e:
return {"error": f"Could not extract image bytes: {e}", "status": "failed"}
if not image_data:
return {"error": "Could not extract image bytes", "status": "failed"}
return {"image_data": image_data, "content_type": content_type, "status": "success"}
Chat Message Processing
The chat protocol handles incoming messages and coordinates payment flow:
chat_proto.py
from datetime import datetime, timezone
from uagents import Context, Protocol
from uagents_core.contrib.protocols.chat import (
ChatAcknowledgement,
ChatMessage,
TextContent,
chat_protocol_spec,
)
from payment import (
request_payment_from_user,
generate_image_after_payment,
)
from shared import create_text_chat
chat_proto = Protocol(spec=chat_protocol_spec)
@chat_proto.on_message(ChatMessage)
async def handle_message(ctx: Context, sender: str, msg: ChatMessage):
ctx.logger.info(f"Got a message from {sender}: {msg.content}")
await ctx.send(
sender,
ChatAcknowledgement(
timestamp=datetime.now(timezone.utc), acknowledged_msg_id=msg.msg_id
),
)
for item in msg.content:
if isinstance(item, TextContent):
text = item.text.strip()
session_id = str(ctx.session)
awaiting_key = f"{sender}:{session_id}:awaiting_prompt"
verified_key = f"{sender}:{session_id}:verified_payment"
if (ctx.storage.has(awaiting_key) or ctx.storage.get(awaiting_key)) and (
ctx.storage.has(verified_key) or ctx.storage.get(verified_key)
):
ctx.logger.info("Consuming prompt post-payment and generating one image")
ctx.storage.remove(awaiting_key)
ctx.storage.remove(verified_key)
ctx.storage.set(f"prompt:{sender}:{session_id}", text)
ctx.storage.set("requesting_user", sender)
await generate_image_after_payment(ctx, sender)
return
ctx.logger.info(f"Requesting payment from {sender} for image generation")
payment_description = "Please complete the payment to generate this image."
ctx.storage.set(f"prompt:{sender}:{session_id}", text)
ctx.storage.set("current_prompt", text)
ctx.storage.remove(f"{sender}:{session_id}:request_recorded")
await request_payment_from_user(ctx, sender, description=payment_description)
return
@chat_proto.on_message(ChatAcknowledgement)
async def handle_ack(ctx: Context, sender: str, msg: ChatAcknowledgement):
ctx.logger.info(f"Got an acknowledgement from {sender} for {msg.acknowledged_msg_id}")
Helper Functions
Shared utilities for creating chat messages:
shared.py
"""
Shared utilities to avoid circular imports between chat_proto and payment_proto.
"""
from datetime import datetime, timezone
from uuid import uuid4
from uagents_core.contrib.protocols.chat import (
AgentContent,
ChatMessage,
TextContent,
)
def create_text_chat(text: str, end_session: bool = False) -> ChatMessage:
"""Create a text chat message."""
content: list[AgentContent] = [TextContent(type="text", text=text)]
if end_session:
from uagents_core.contrib.protocols.chat import EndSessionContent
content.append(EndSessionContent(type="end-session"))
return ChatMessage(
timestamp=datetime.now(timezone.utc),
msg_id=uuid4(),
content=content,
)
Agent Initialization
The main agent file sets up protocols and wallet using environment-based configuration:
agent.py
import os
from dotenv import load_dotenv
from uagents import Agent, Context
load_dotenv()
from chat_proto import chat_proto
from payment import payment_proto, set_agent_wallet
agent = Agent(
name=os.getenv("AGENT_NAME", "Fet Example Agent"),
seed=os.getenv("AGENT_SEED_PHRASE", "gemini-imagen-agent"),
port=int(os.getenv("AGENT_PORT", "8000")),
mailbox=True,
)
agent.include(chat_proto, publish_manifest=True)
agent.include(payment_proto, publish_manifest=True)
set_agent_wallet(agent.wallet)
@agent.on_event("startup")
async def startup(ctx: Context):
ctx.logger.info(f"Agent started: {agent.wallet.address()}")
ctx.logger.info("=== Gemini Imagen Image Generation Agent ===")
ctx.logger.info("💰 Accepted: 0.1 FET (direct)")
ctx.logger.info("🎨 Images via Gemini Imagen (GEMINI_API_KEY)")
ctx.logger.info("📧 Chat to request image generation")
if __name__ == "__main__":
agent.run()
Requirements
Install dependencies from requirements.txt:
requirements.txt
uagents==0.23.6
uagents-core==0.4.0
python-dotenv
google-genai
Pillow
Configuration
Copy .env.example to .env and set your credentials:
.env.example
# Agent identity (optional; defaults shown)
AGENT_NAME=Fet Example Agent
AGENT_SEED_PHRASE=gemini-imagen-agent
AGENT_PORT=8000
# Gemini API for image generation (required)
GEMINI_API_KEY=your_gemini_api_key_here
# Optional: Gemini Imagen model name
# GEMINI_IMAGEN_MODEL=imagen-4.0-fast-generate-001
# Fetch.ai network (true = testnet, false = mainnet)
FET_USE_TESTNET=true
Create a .env file with required credentials:
# Copy from .env.example and fill in values
cp .env.example .env
# Edit .env and set GEMINI_API_KEY, etc.
Installation & Execution
Set up the environment and run the agent:
# Create virtual environment
python3 -m venv .venv && source .venv/bin/activate
# Install dependencies from requirements.txt
pip install -r requirements.txt
# Configure environment (copy .env.example to .env and set GEMINI_API_KEY, etc.)
cp .env.example .env
# Start the agent
python3 agent.py
Usage Flow
- User sends message: Submit an image prompt via chat
- Payment request: Agent responds with a payment request for 0.1 FET
- User pays: Buyer completes on-chain FET transfer
- Verification: Agent verifies transaction on Fetch.ai ledger
- Generation: Gemini Imagen creates the image (GEMINI_API_KEY)
- Delivery: Image uploaded to tmpfiles.org and sent as chat resource
Implementation Details
Payment Verification Setup
- Install blockchain library:
pip install cosmpy - Network configuration: Set
FET_USE_TESTNETin.env(true for testnet, false for mainnet) - Payment definition: In
payment.py, defineFET_FUNDS = Funds(currency="FET", amount="0.1", payment_method="fet_direct") - Buyer metadata: On
CommitPayment, buyer must providebuyer_fet_walletinmsg.metadata - On-chain check: Agent uses
LedgerClient.query_tx()to verify transaction events match expected transfer
Key Implementation Features
- Blockchain Integration: Direct on-chain verification without payment intermediaries
- Gemini Imagen: Image generation via Google AI (
GEMINI_API_KEY); tmpfiles.org for hosting - State Management: Session-based storage tracks payment status and prompts
- Error Recovery: Failed generations allow one retry without additional payment (
_allow_retry) - Resource Protocol: Images delivered as
ResourceContentwith "Here is your generated image." and tmpfiles.org URLs
The screenshots below show the Fet Example Agent flow: (1) payment request with Reject / Approve FET Payment, and (2) the generated image delivered after successful payment.
1. Payment request — Agent asks for 0.1 FET on Dorado; user can approve or reject.
2. Generated image — After payment, the agent returns the generated image (e.g. smartwatch on white background).
Get the full example with implementation:
Getting FET Testnet Tokens
To test this agent on the Fetch.ai testnet, you'll need testnet FET tokens in your wallet. Here's how to get them:
-
Visit the Testnet Faucet: Go to the official Fetch.ai Testnet Faucet to request testnet tokens
-
Wait for Confirmation: Testnet tokens are typically distributed automatically after a short delay
For detailed instructions and a step-by-step visual guide, check out this blog post or watch the video below:
