Agent Chat Protocol

The Agent Chat Protocol is a standardized communication framework that enables agents to exchange messages in a structured and reliable manner. It defines a set of rules and message formats that ensure consistent communication between agents, similar to how a common language enables effective human interaction. This guide demonstrates how to implement and utilize this protocol in your agents.

Understanding the Chat Protocol

The chat protocol consists of several key components that work together to enable reliable communication between agents. Let's explore each component:

1. Core Models

TextContent

class TextContent(Model):
    type: Literal['text']
    text: str

• Basic content type for text messages
• Uses Literal['text'] to ensure type safety
• text field stores the actual message content

Resource and ResourceContent

class Resource(Model):
    uri: str
    metadata: dict[str, str]

class ResourceContent(Model):
    type: Literal['resource']
    resource_id: UUID4
    resource: Resource | list[Resource]

• Resource: Represents external resources (files, images, etc.)
  • uri: Location of the resource
  • metadata: Additional resource information
• ResourceContent: Wraps resources in messages
  • resource_id: Unique identifier for tracking
  • resource: Single or multiple resources

Metadata Types

class Metadata(TypedDict):
    mime_type: str
    role: str

class MetadataContent(Model):
    type: Literal['metadata']
    metadata: dict[str, str]

• Metadata: Defines resource metadata structure
  • mime_type: Resource type (e.g., "text/plain")
  • role: Resource's purpose in communication
• MetadataContent: For sending metadata-only messages

2. Session and Stream Management

Session Control

class StartSessionContent(Model):
    type: Literal['start-session']

class EndSessionContent(Model):
    type: Literal['end-session']

• Manages chat session lifecycle
• StartSessionContent: Initiates new sessions
• EndSessionContent: Properly terminates sessions

Stream Control

class StartStreamContent(Model):
    type: Literal['start-stream']
    stream_id: UUID4

class EndStreamContent(Model):
    type: Literal['start-stream']
    stream_id: UUID4

• Handles continuous data streams
• stream_id: Unique identifier for stream tracking

3. Agent Content Type

AgentContent = (
    TextContent
    | ResourceContent
    | MetadataContent
    | StartSessionContent
    | EndSessionContent
    | StartStreamContent
    | EndStreamContent
)

• Combines all possible content types
• Ensures type safety in message content

4. Message Types

ChatMessage

class ChatMessage(Model):
    timestamp: datetime
    msg_id: UUID4
    content: list[AgentContent]

• Primary message type for communication
• timestamp: When message was sent (UTC)
• msg_id: Unique message identifier
• content: List of content elements discussed above.

ChatAcknowledgement

class ChatAcknowledgement(Model):
    timestamp: datetime
    acknowledged_msg_id: UUID4
    metadata: dict[str, str] | None = None

• Confirms message receipt
• acknowledged_msg_id: References original message
• Optional metadata for additional information

5. Message Handlers

@protocol.on_message(ChatMessage)
async def handle_message(_ctx: Context, sender: str, msg: ChatMessage):
    print('I got a chat message', sender, msg)

@protocol.on_message(ChatAcknowledgement)
async def handle_ack(_ctx: Context, sender: str, msg: ChatAcknowledgement):
    print('I got a chat acknowledgement', sender, msg)

• Process incoming messages
• Handle acknowledgments

Using the Chat Protocol

To implement the chat protocol in your agents, you can import all the above components from the uagents_core package:

from uagents_core.contrib.protocols.chat import (
    ChatMessage,
    ChatAcknowledgement,
    TextContent,
    chat_protocol_spec
)

Basic Message Flow

The protocol follows a simple request-response pattern with acknowledgments:

1. Agent A sends a ChatMessage to Agent B
2. Agent B sends a ChatAcknowledgement back to Agent A
3. Agent B can then send a ChatMessage response to Agent A
4. Agent A sends a ChatAcknowledgement back to Agent B

Let's create two agents on Agentverse that communicate using the chat protocol. Refer to the Hosted Agents section to understand the detailed steps for agent creation on Agentverse.

Agent1 Script

agent1.py

from datetime import datetime
from uuid import uuid4
from uagents import Agent, Protocol, Context, Model
from time import sleep

#import the necessary components from the chat protocol
from uagents_core.contrib.protocols.chat import (
    ChatAcknowledgement,
    ChatMessage,
    TextContent,
    chat_protocol_spec,
)

# Intialise agent1
agent1 = Agent()

# Store agent2's address (you'll need to replace this with actual address)
agent2_address = "agent1qf8n9q8ndlfvphmnwjzj9p077yq0m6kqc22se9g89y5en22sc38ck4p4e8d"

# Initialize the chat protocol
chat_proto = Protocol(spec=chat_protocol_spec)


#Startup Handler - Print agent details and send initial message
@agent1.on_event("startup")
async def startup_handler(ctx: Context):
    # Print agent details
    ctx.logger.info(f"My name is {ctx.agent.name} and my address is {ctx.agent.address}")

    # Send initial message to agent2
    initial_message = ChatMessage(
        timestamp=datetime.utcnow(),
        msg_id=uuid4(),
        content=[TextContent(type="text", text="Hello from Agent1!")]
    )

    await ctx.send(agent2_address, initial_message)

# Message Handler - Process received messages and send acknowledgements
@chat_proto.on_message(ChatMessage)
async def handle_message(ctx: Context, sender: str, msg: ChatMessage):
    for item in msg.content:
        if isinstance(item, TextContent):
            # Log received message
            ctx.logger.info(f"Received message from {sender}: {item.text}")

            # Send acknowledgment
            ack = ChatAcknowledgement(
                timestamp=datetime.utcnow(),
                acknowledged_msg_id=msg.msg_id
            )
            await ctx.send(sender, ack)

            # Send response message
            response = ChatMessage(
                timestamp=datetime.utcnow(),
                msg_id=uuid4(),
                content=[TextContent(type="text", text="Hello from Agent1!")]
            )
            await ctx.send(sender, response)

# Acknowledgement Handler - Process received acknowledgements
@chat_proto.on_message(ChatAcknowledgement)
async def handle_acknowledgement(ctx: Context, sender: str, msg: ChatAcknowledgement):
    ctx.logger.info(f"Received acknowledgement from {sender} for message: {msg.acknowledged_msg_id}")



# Include the protocol in the agent to enable the chat functionality
# This allows the agent to send/receive messages and handle acknowledgements using the chat protocol
agent1.include(chat_proto, publish_manifest=True)

if __name__ == '__main__':
    agent1.run()

Agent2 Script

agent2.py

from datetime import datetime
from uuid import uuid4
from uagents import Agent, Protocol, Context

#import the necessary components from the chat protocol
from uagents_core.contrib.protocols.chat import (
    ChatAcknowledgement,
    ChatMessage,
    TextContent,
    chat_protocol_spec,
)
# Initialise agent2
agent2 = Agent()

# Initialize the chat protocol
chat_proto = Protocol(spec=chat_protocol_spec)


# Startup Handler - Print agent details
@agent2.on_event("startup")
async def startup_handler(ctx: Context):
    # Print agent details
    ctx.logger.info(f"My name is {ctx.agent.name} and my address is {ctx.agent.address}")

# Message Handler - Process received messages and send acknowledgements
@chat_proto.on_message(ChatMessage)
async def handle_message(ctx: Context, sender: str, msg: ChatMessage):
    for item in msg.content:
        if isinstance(item, TextContent):
            # Log received message
            ctx.logger.info(f"Received message from {sender}: {item.text}")

            # Send acknowledgment
            ack = ChatAcknowledgement(
                timestamp=datetime.utcnow(),
                acknowledged_msg_id=msg.msg_id
            )
            await ctx.send(sender, ack)

            # Send response message
            response = ChatMessage(
                timestamp=datetime.utcnow(),
                msg_id=uuid4(),
                content=[TextContent(type="text", text="Hello from Agent2!")]
            )
            await ctx.send(sender, response)

# Acknowledgement Handler - Process received acknowledgements
@chat_proto.on_message(ChatAcknowledgement)
async def handle_acknowledgement(ctx: Context, sender: str, msg: ChatAcknowledgement):
    ctx.logger.info(f"Received acknowledgement from {sender} for message: {msg.acknowledged_msg_id}")

# Include the protocol in the agent to enable the chat functionality
# This allows the agent to send/receive messages and handle acknowledgements using the chat protocol
agent2.include(chat_proto, publish_manifest=True)

if __name__ == '__main__':
    agent2.run()

Running the Agents

To run the example, you'll need to:

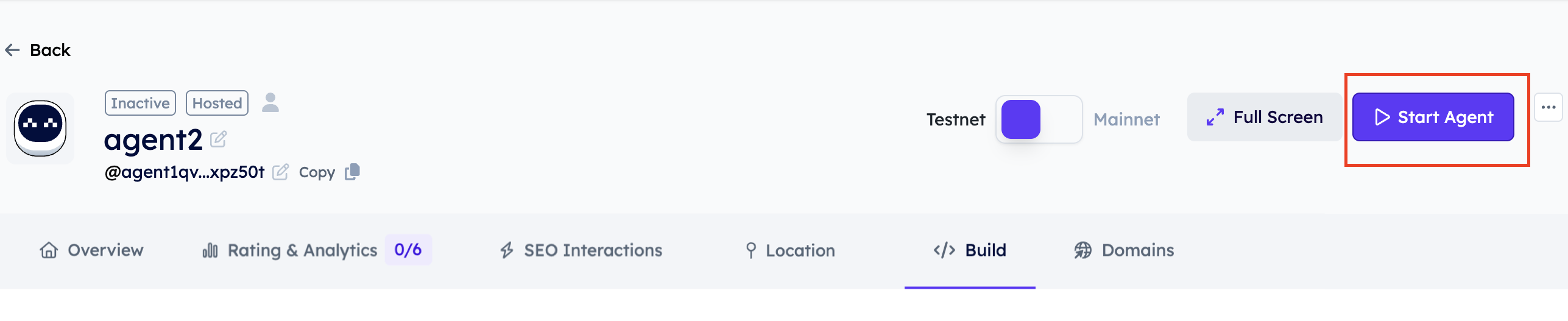

1. Start Agent2 first:

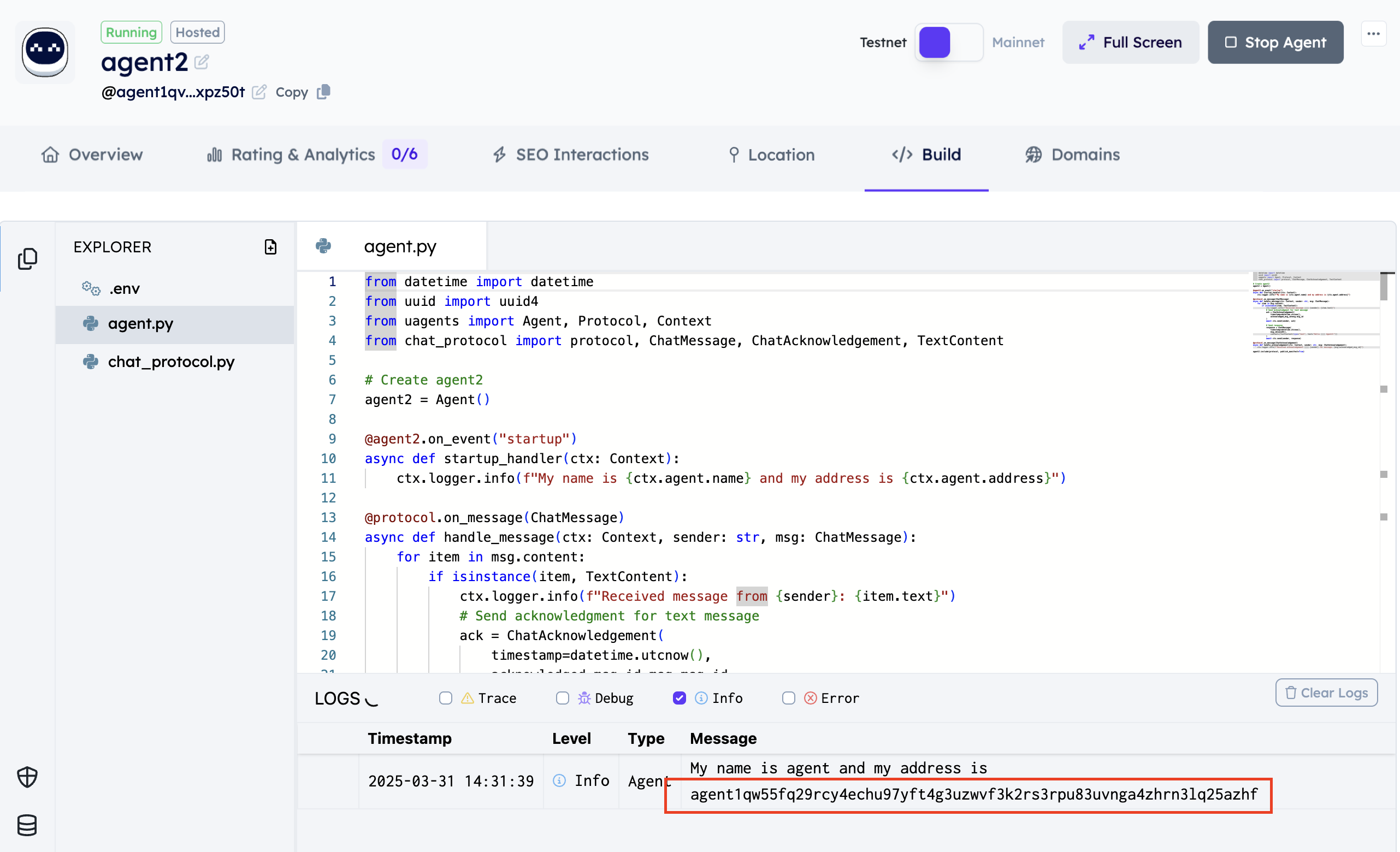

2. Copy Agent2's address from the startup logs and update it in Agent1's script

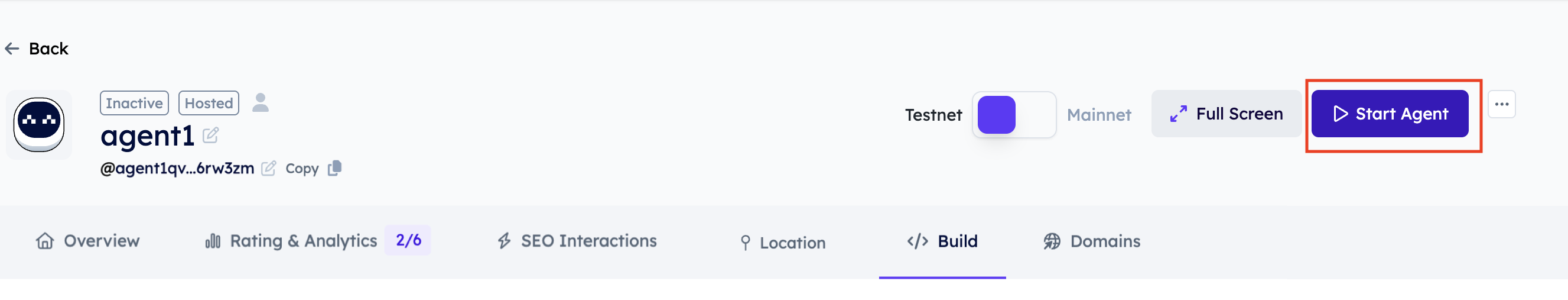

3. Start Agent1:

Expected Output

When running both agents, you should see output similar to:

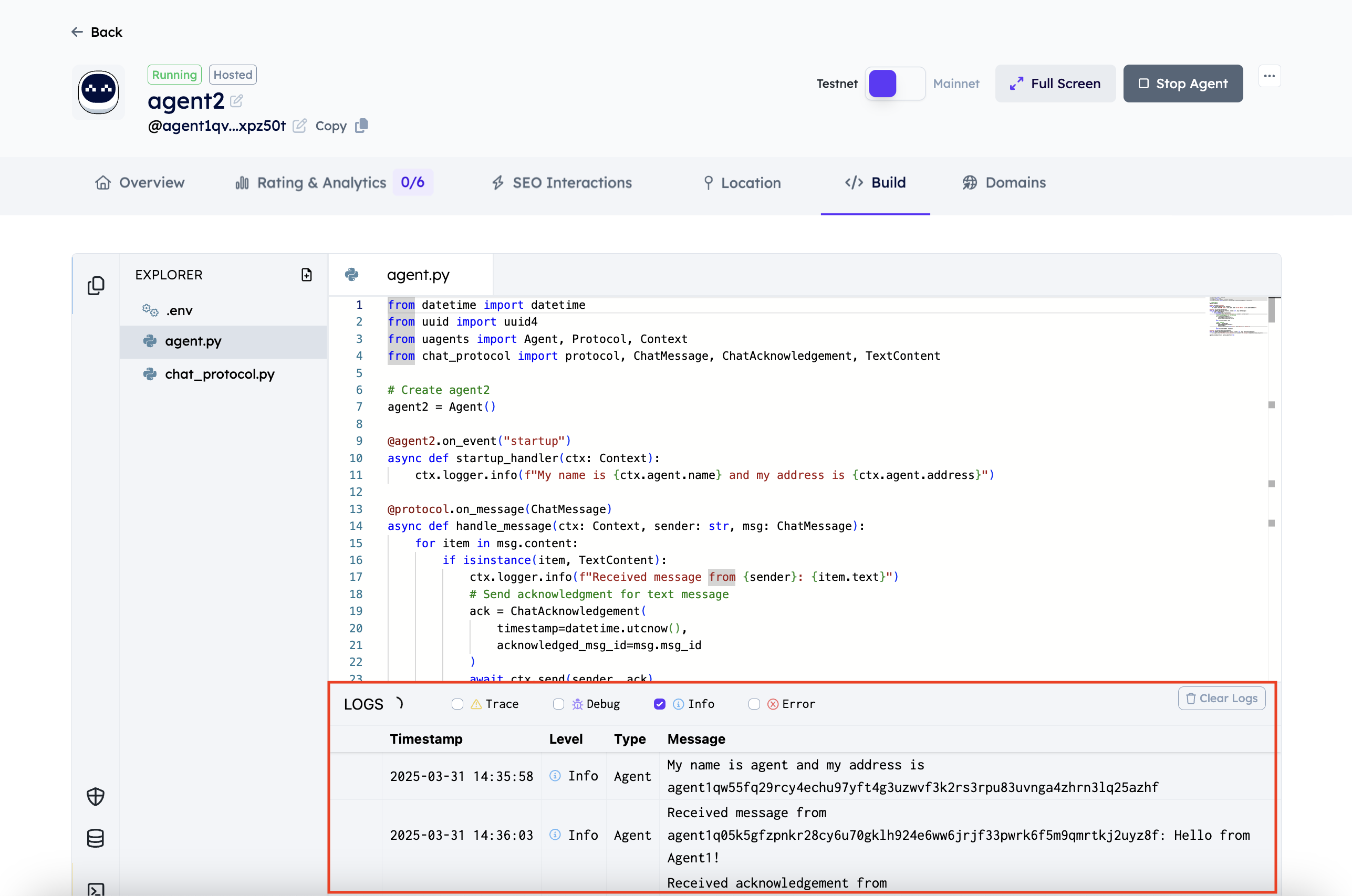

Agent2 Logs

Agent1 Logs

This guide demonstrates the communication via chat protocol between two agents hosted on Agentverse. If you wish to run these agents on your local machine instead, you'll need to initialize the agents with specific ports and endpoints:

# For agent1
agent1 = Agent(
    name="agent1",
    port=8000,
    endpoint=["http://localhost:8000/submit"]
)

# For agent2
agent2 = Agent(
    name="agent2",
    port=8001,
    endpoint=["http://localhost:8001/submit"]
)

To learn more about setting up and running agents locally, refer to the Local Agents section of our documentation.
